Description
Overview
The Chimeflash is a wireless doorbell alerting system with a lot of amazing features including ultra-bright flashing LED lights, loud sound with volume control, and indicator symbols.
The Chimeflash was created with hard-of-hearing people in mind, but it will also work for persons with vision impairments or those who simply need a decent doorbell that has a long range, is reliable and is loud.
You can choose how you would like to be alerted, either by Sound only, flash Only or Sound and Flash together.

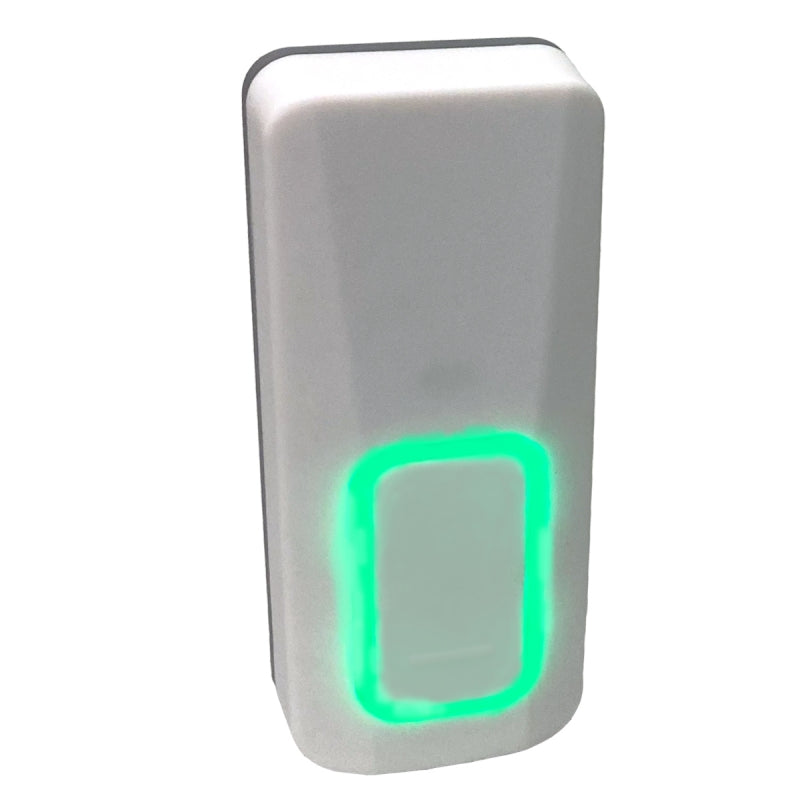

The Bellpush has a brilliant mounting system whereby you have a mounting plate that fixes to the door, frame or brickwork, you then attach the push to the plate, which means no more opening up of the bellpush when its time to change the battery, the bellpush is also waterproof and is rated to IP56. The bellpush uses the CR2032 coin cell battery type which is supplied with the system. There is a Green confidence light around the push button which lets you know that the push has been activated.
What's in the box?
- Chimeflash Bellpush with Mounting Plate (Sticky Pad fitted)
- Chimeflash Receiver
- 3 x "C" size Alkaline Batteries
- 1 x CR2032 Battery
- 2 x Wallplugs
- 2 x Screws
- Instruction
- Drilling Template
What's in the box https://youtu.be/hh9eIDs2TBs
Bellpush battery installation https://youtu.be/Y5FfvTNnqXU
Receiver battery installation https://youtu.be/dhkoRuMOGjw
System programming guide https://youtu.be/_p7b6gVA3jo
Changing sounds on the receiver https://youtu.be/xMHFTf7s7BM
Features
- Easy access battery compartment
- Battery removal ribbon
- Multifunctional button/scroll wheel accessing the intuitive programming system
- Three alerting options: Sound only, Flash only or Sound and Flash together
- Ultra-bright flashing light
- indicator symbols
- 6 x Extra loud doorbell and telephone chime sounds of up to 100dB!
- Batteries Included!
- Up to 300m range in open space
- Optional Telephone Transmitter and Mains Power supply available
Technical Information

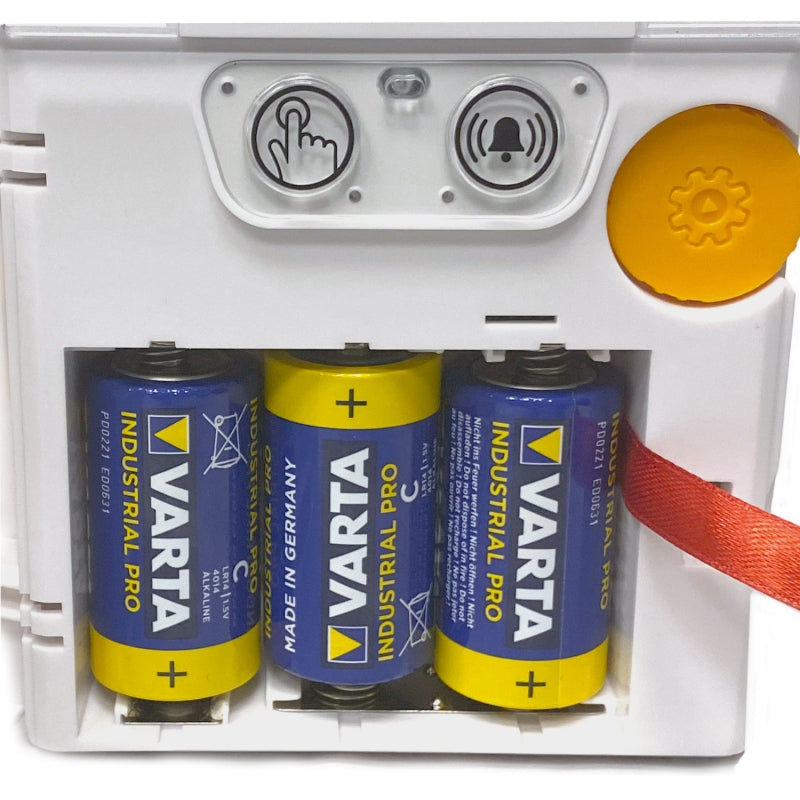

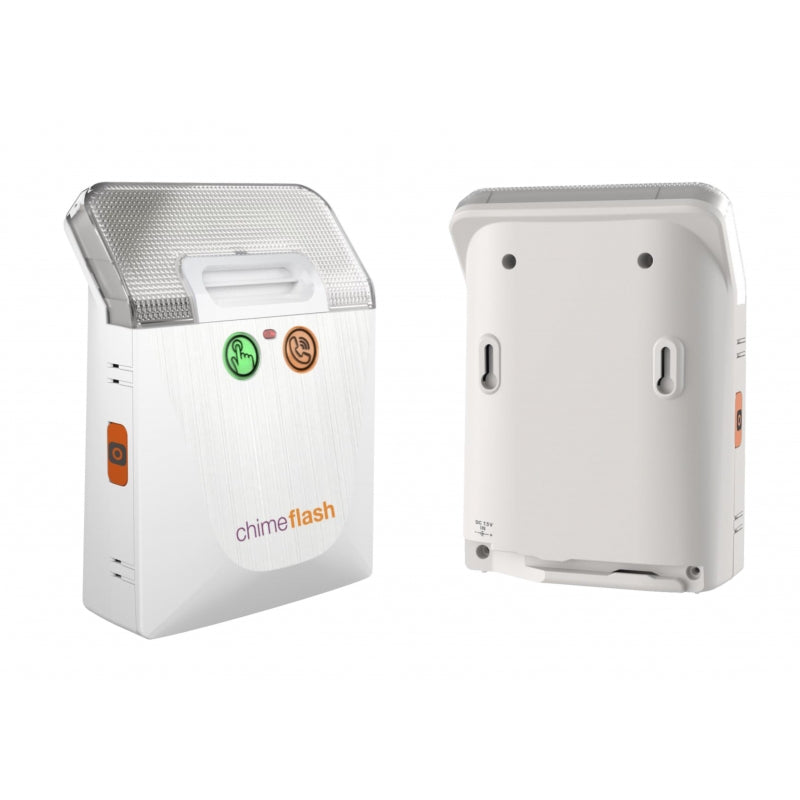

Receiver:
- Transmission frequency 868.4 MHz
- Power supply 3x "C" size batteries or optional mains power supply (DC 12V/1A)
- Battery Expectancy: Up to 12 Months
- Volume up to 100 dB at 1 m distance
- Temperature range 0 to 40°C
Transmitter:
- Transmission range up to 300 m (in open areas)
- transmission power <10 mW
- Power supply 1x button cell type CR2032
- battery Expectancy: Up to 2 years
Bellpush Features Video https://youtu.be/mmSVz0Rai_M
Receiver Features https://youtu.be/Hz2BxeERZk8
Size
- Receiver: 145 mm x 105 mm x 52 mm
- Transmitter: 80mm x 32mm x 17mm
Weight
- Receiver: 216g (without batteries)
- Doorbell pushbutton: 25g
- Telephone transmitter: 30g
Optional Accessory
ChimeFlash Telephone Transmitter
