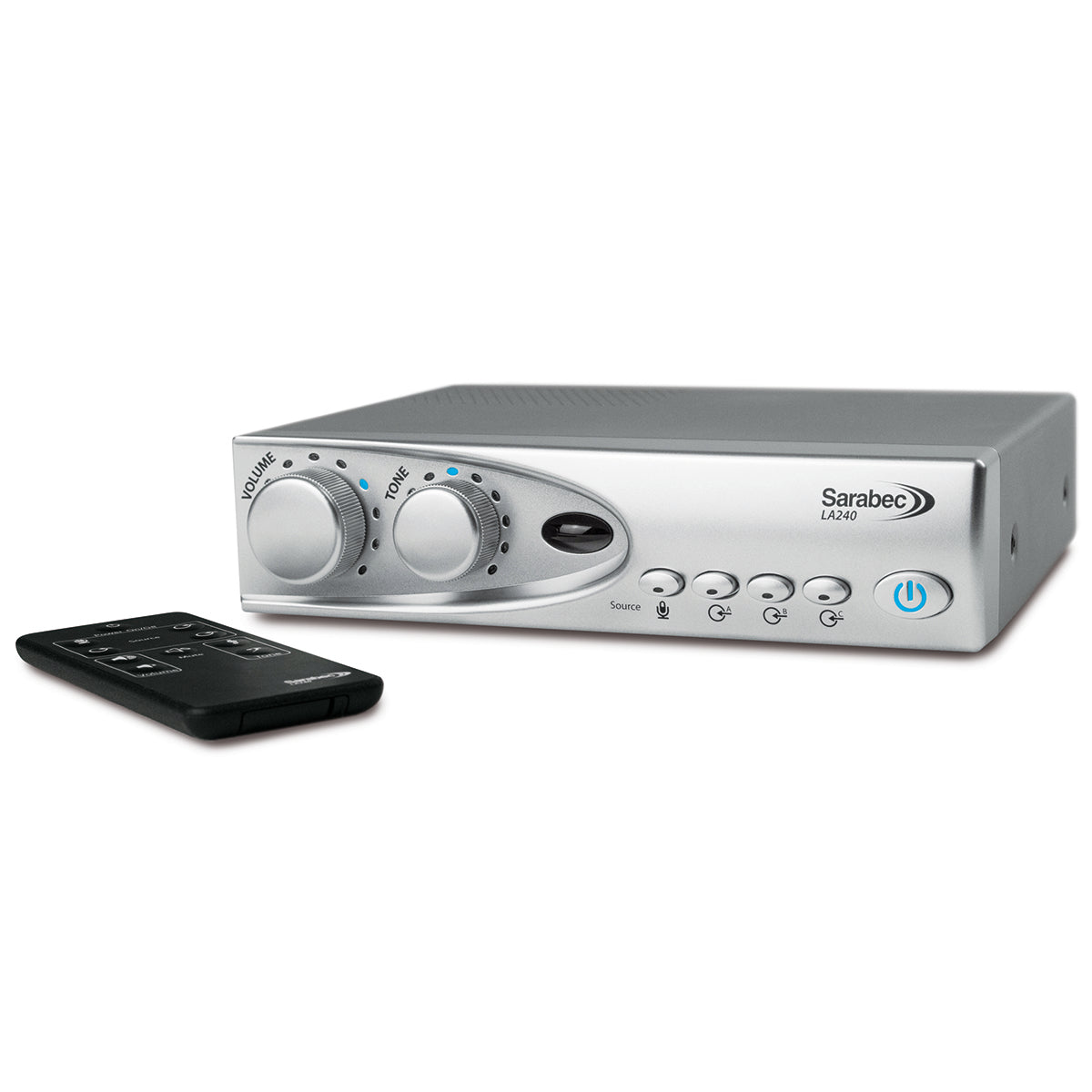

LA240 Home Loop System

DH2351

Overview

Shipping will be delayed as this is an Order to Order item

The LA240 Loop System is a practical solution for hearing aid users who want to listen to their TV or audio equipment more easily by using the "T" or "Loop" programme on their hearing aid.
Because there is no direct connection between the user and a TV or audio equipment, the user is free to roam around the looping area while listening to a TV or audio equipment without the distractions associated with ordinary listening.

The Loop System works with a hearing aid that has a "T" or "Loop" programme, which may be found on many 'behind the ear' or 'in the ear hearing aids.

The Loop system delivers sound from tv to an amplifier via a direct connection or a microphone. The sound is then transmitted inductively, via "magnetic sound waves," to a hearing aid with a loop function through a wire loop wrapped around the listening area.

The user can then alter the loop loudness or tone to fit their personal hearing preferences without harming others.

The Loop System comes with either Loop Cable or Loop Pad.

A loop wire is wrapped around a room that you want to listen in on. The sound can be heard anywhere inside the "looped" area and sometimes just outside the loop as well.

A Loop Pad is an alternative to a loop cable that is used to build a localized or portable system to avoid interference with other systems or where confidentiality is essential.

Details

Features:

  • Optical and Coaxial digital audio input
  • Separate Mains power supply allowing use by DC inputs from 12-24V, one version covers all markets
  • Memory of control settings allowing remote power switching
  • Digital Rotary Volume and Tone controls with LED indication
  • Source selection of all inputs from front panel, mixing of inputs is possible.
  • Increased output current 3A RMS and 40m Loop cable coverage up to 70m2
  • Loop Level Indicator
  • Priority Function Control
  • Automatic Gain ControlOn/Off Mains Switch
  • Blue LED Function Indicators
  • Red LED Level Indicator
  • 2 Microphone Inputs
  • 3 Line inputs

If you choose this system you will receive:

  • LA240 amplifier & Stand
  • Power supply & Mains Lead
  • Digital Audio Optical TOSlink & Coaxial leads
  • Loop Pad with 5m Lead
  • 1 Direct Connection lead kit

Technical Info:

Power Supply:

  • 18V 1.5A Power Supply
  • 12-24V DC 2A External Supply

Controls:

  • Rotary Volume Control
  • Rotary Tone control
  • On/Off power switch
  • Source selector switchesPriority switch

Input connections:

Digital Audio TOSlink/Coaxial
2 x Microphone inputs. 3.5mm mono jack plug. DC powered 5V for electret microphones
2x Aux In Left/Right line inputs. Phono/RCA sockets. For direct connection to a TV sound output or other audio source via SCART or other suitable socket.
Output connections:

Push grip connectors for loop cable or loop pad (Labelled: Loop Cable). Loop will give full output with loop resistance between 0.5 and 1.5 Ohms.
3.5mm stereo jack for headphones (Phones) 8-60 Ohms
Loop output:

3.0A output current @ 100-5KHz. Meets BS EN60118-4:2006 for a loop not exceeding 6.5m (20ft) in width . Suitable for areas up to 70m2
Indicators:

Red & Blue LED’s
